Canada Blower BP panel fan is designed for general ventilation and
process cooling involving the movement of clean, ambient temperature
air. Typical fan applications include air filter units, casting
cooling, cold room circulation, condensation control, electrical panel
& transformer cooling, elimination of heat stratification,
greenhouse ventilation, non-corrosive fume exhaust, parking garages,
and washed parts drying.
For special ventilation application requirements, Canada Blower offers
hot dipped galvanized construction (fan housing only), all aluminum
ventilator construction and various coatings and options applied
directly to the fan and propeller.

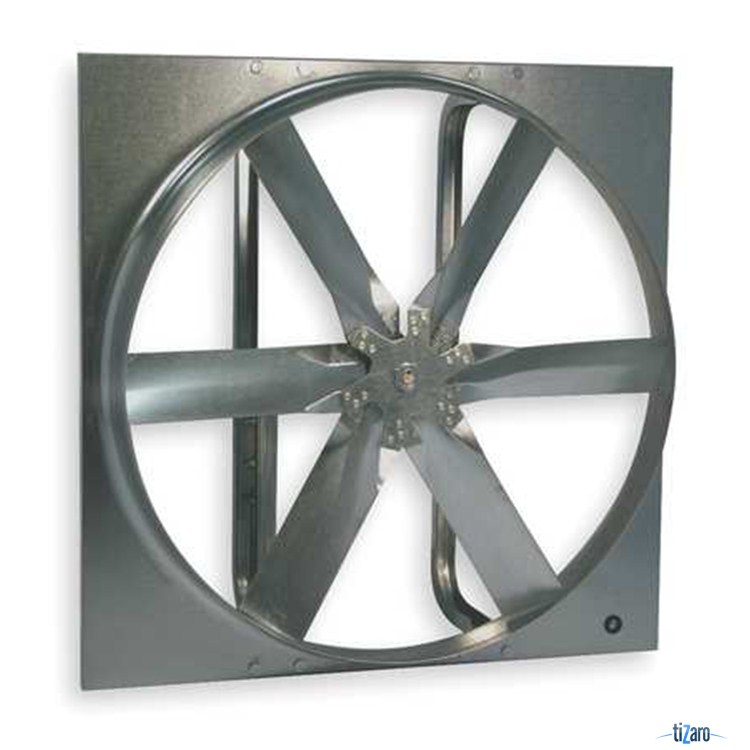

The Panel and Ring Fan housings are constructed of heavy-gauge steel
with an integral deep spun orifice for greater airflow efficiency and
maximum airflow fan capacity. If a sharp edged entrance is used, the
flow is non-uniform when entering the fan, increasing the horsepower
requirements and reducing the airflow capacity. Both types of fans are
also available in standard or reverse flow fan arrangements. A second
orifice is added to convert the unit to reverse air flow. Panel and
Ring Fans also feature an all-welded, triangulated, reinforced motor
base plate to ensure the fan’s long life in heavy-duty service.
The Belted Panel and Ring Canada Blower Fans have the propeller secured
to the fan shaft with a split taper lock bushing. Split taper lock
bushings ensure correct alignment and positive locking of the propeller
to the ventilator shaft. Oversized fan bearings are used on Belted
Panel and Ring Fans to ensure maximum bearing life for heavy-duty
service. All drive selections for Belted Panel and Ring Fans are
designed with a 1.2 service factor as standard.
Direct Drive Panel and Ring Fans feature low maintenance needs due to
minimal moving parts. There are no fan bearings, drive sheaves or belts
to maintain. The propeller on the Canada Blower Direct Drive Panel and
Ring Fan is attached to the motor shaft with knurled cup point
setscrews on fan sizes up to 16" diameter and split taper lock bushings
on fan sizes 18" and larger. These mounting techniques ensure correct
alignment and positive locking of the ventilator propeller to the shaft.
Canada Blower Direct Drive Panel and Ring Fans are designed for general
ventilation applications such as:
• Heat Transfer Devices
• Industrial Plants
• Raw Product Storage
• Process Equipment
Belted Panel and Ring Canada Blower Fans are designed for general
ventilation and process cooling involving the movement of clean,
ambient temperature air. Typical applications include:
• Air Filter Units
• Casting Cooling
• Cold Room Circulation
• Condensation Control
• Electrical Panel & Transformer Cooling
• Elimination of Heat Stratification
• Greenhouse Ventilation
• Non-Corrosive Fume Exhaust
• Parking Garages
• Washed Parts Drying
Reversible Canada Blower blade design, defined as Type R, is a truly
reversible cast aluminum fan propeller. It is capable of moving
the same volume of air, at the same brake horsepower require ments, in
either ventilator airflow direction.
